Circuit Protection

Circuit Protection (Fuse / CSR / OVP / OCP)

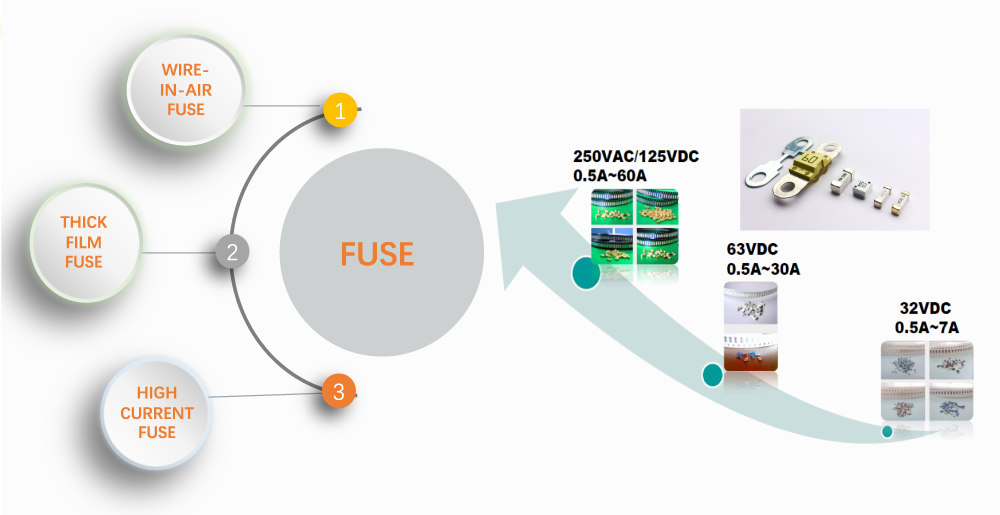

Main Product - Fuse

  • pro_04_SART_02.png

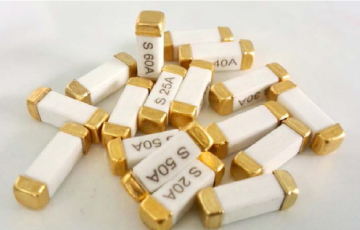

Square Chip Fuse (1032 / 6125)

FEATURE :

 • Wire-In-Air construction
 • High DC current ratings: 20A to 60A
 • 10.3mmX3.2mm footprint
 • Excellent Inrush withstand capability
 • Wide operating temperature range : -55ºC to 125ºC
 • RoHS Compliant
 • Agency approval: UL

WIRE-IN-AIR 6125 Fuse

FEATURE :

 • Excellent Inrush withstand capability
 • Standard 6.1mmx2.5mm footprint
 • Wide range of current ratings
 • Wide operating temperature range : -55ºC to 125ºC
 • RoHS Compliant
 • Agency approval: UL Recognized (All series), PSE (Fast acting),
   TUV (250VAC series), KC (250VAC series)
 • Various product series available: Fast acting, Slow blow, 250VAC High-Inrush

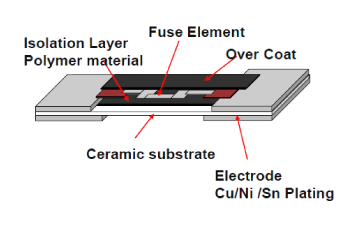

Thick Film Chip Fuse (0603 / 1206 / 2512)

THICK FILM FUSE

FEATURE :

 • Available in standard 1206 and 0603 footprints
 • Wide range of current ratings
 • Wide operating temperature range: -50ºC to 125ºC
 • RoHS Compliant, Pb-free and Halogen free
 • Agency approval: UL recognized
 • Fast acting, Slow blow types available
 • Very cost effective technology


Main Product - CSR (Chip Precision Resistance)

  • pro_04_SART_06.png

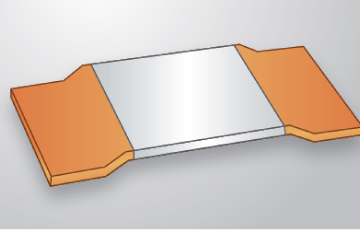

Alloy Stamping Precision Resistance (SMB / SM / SMA Series)

CSR SMA SERIES

FEATURE :

 • Highly reliable technology
 • Low TCR and Excellent thermal EMF
 • Standard 2512 footprint
 • RoHS compliant, Pb-free
 • Resistance range: 1m W to 10 m W

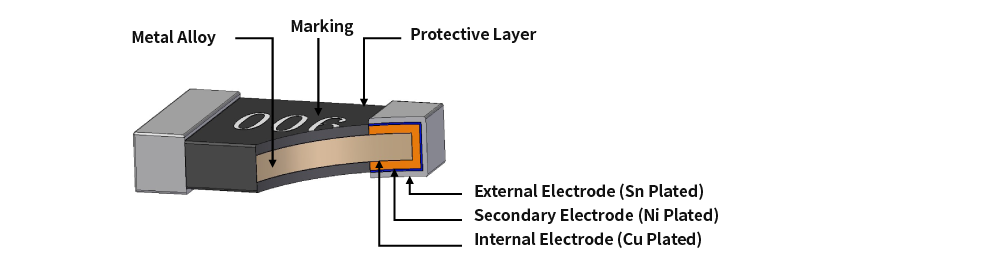

Alloy Film-mounted Precision Resistance (SMS / SME / SMF Series)

CSR SMS SERIES

FEATURE :

 • Supreme Electron beam welding (EBW) technology
  • Ultra low resistance: 0.2- 4mΩ
  • Low TCR, Low thermal EMF
  • Dimensions: 3920, 5921
  • Power ratings: 5W to 7W
  • RoHS compliant, Pb-free
  • For high power applications
 ( current shunt )

CSR SMF SERIES

FEATURE :

 • Highly reliable technology
 • Low TCR and Low thermal EMF
 • Dimension: 0603, 0805, 1206, 2512
 • Power ratings: 0.5W to 2W
 • RoHS compliant, Pb-free
 • Resistance range: 5m W to 200m W
 • Cost effective

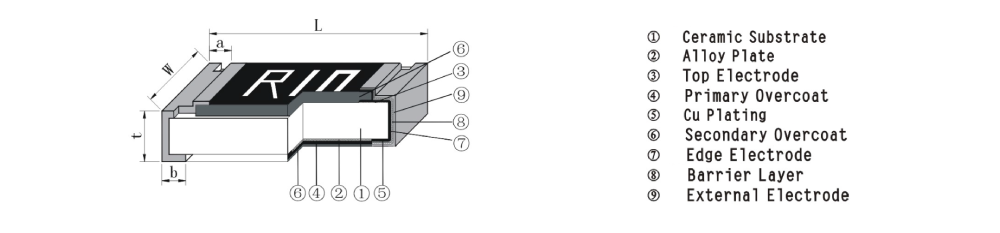

Thick Film Chip Precision Resistance (SK Series)
